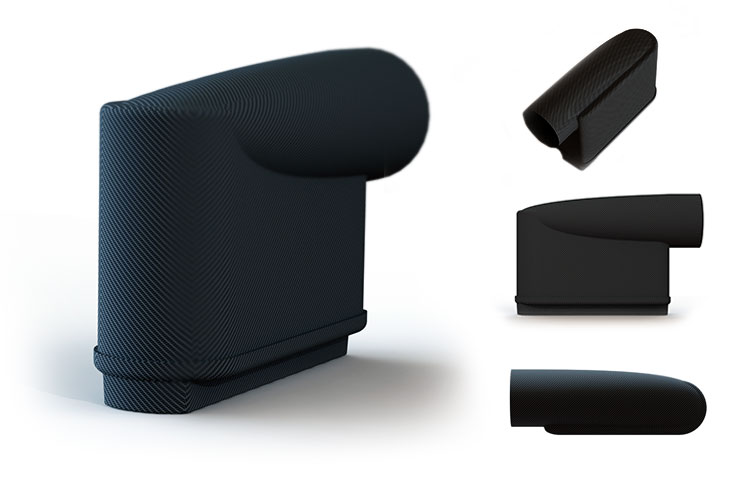

ReVerie Hockenheim 422 MAX Carbon Air Box Kit & 50mm Back Plate

Product Description

The Reverie Hockenheim 422 MAX Carbon air box is suitable for High horsepower 4 cylinder engines needing large airbox volume and intake size with horizontal or vertical intakes and on engines with a closely spaced intake.
Box lid Can be trimmed to tailor the depth to your application.
The airbox features a large 150mm/6" inlet and a 30mm deep fuel rail spacer backplate to clear fuel rails that overhang the trumpet mounting face.
Can be remote filtered or fit internal filter

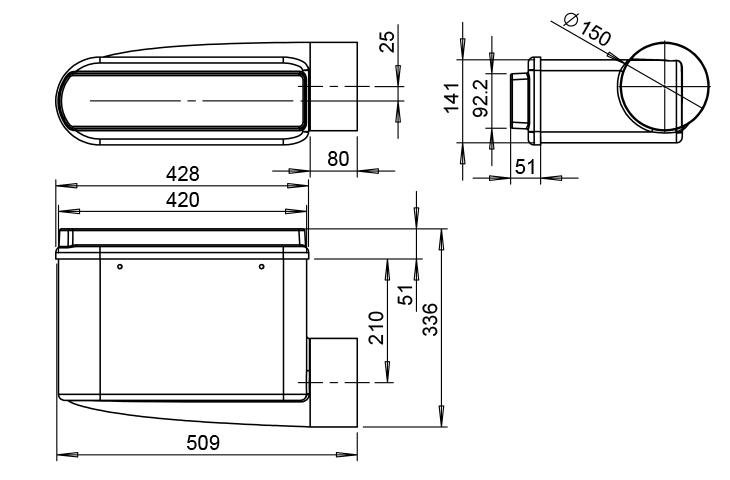

A Technical drawing of this product can be found here

We also sell internal ITG Filter element 105mm high perfectly suited to this airbox - R01SE6173
Or internal ITG Filter element 160mm high perfectly suited to this airbox - R01SE6172

Dimensions: L422mm x H141mm x D239mm
Back Plate: 72mm
Volume: 16.8L (Approx)
