Fitment: 4 cylinder engines
Volume: 7.6L

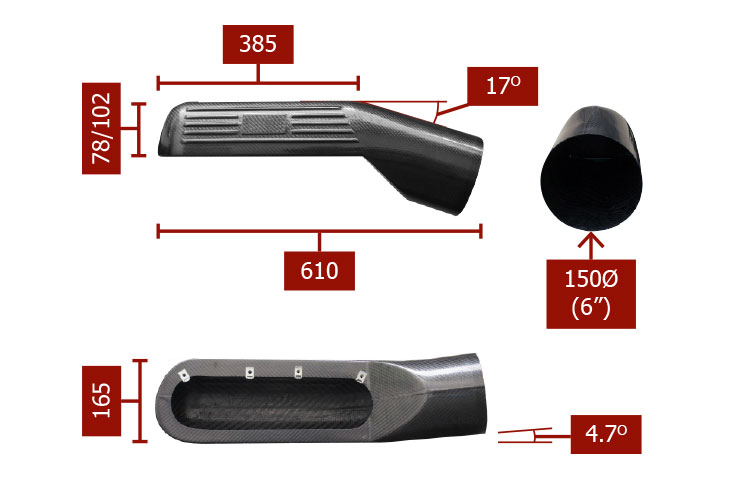

Technical Drawing: Click Here

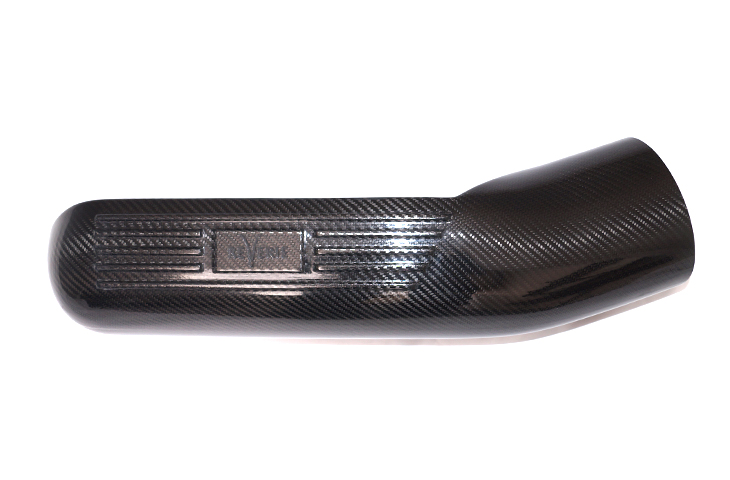

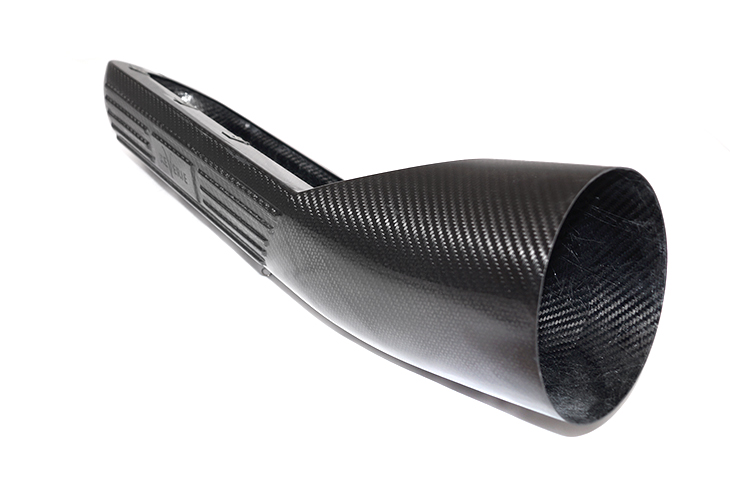

The Silverstone 78RH air box is designed for 4-cylinder engines and can accommodate a 6' (152mm) cone air filter in the end of the air box. Filter adapters are available to reduce the air inlet diameter to either 127.5mm, 100mm, 85mm, 75mm, 70mm or 58mm. Specialised adapters with multiple smaller inlet diameters can be further used to reduce induction noise or route enough air through a difficult chassis -
(LH entry; logo reads left to right with entry on left end, RH entry; logo reads left to right with entry on right end)
Note: air box fitting kit should also be purchased as backplate not included (See 'Airbox accesories' section)
