Dual Element Wing Centre Tab Adjustment Mount Set (Standard Height)

Product Description

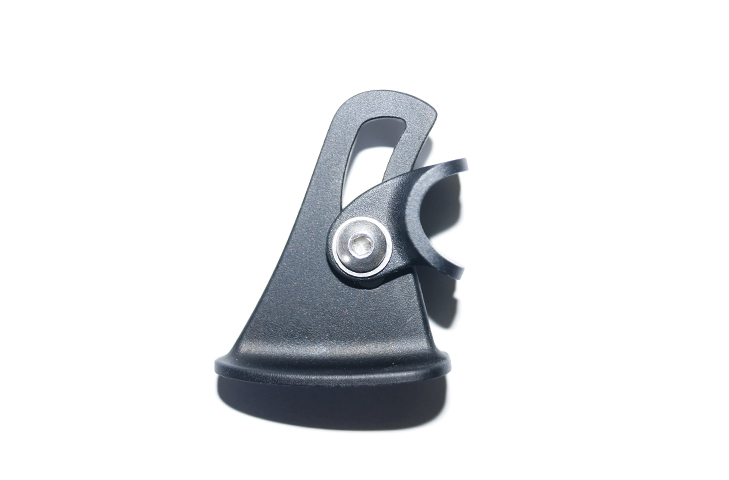

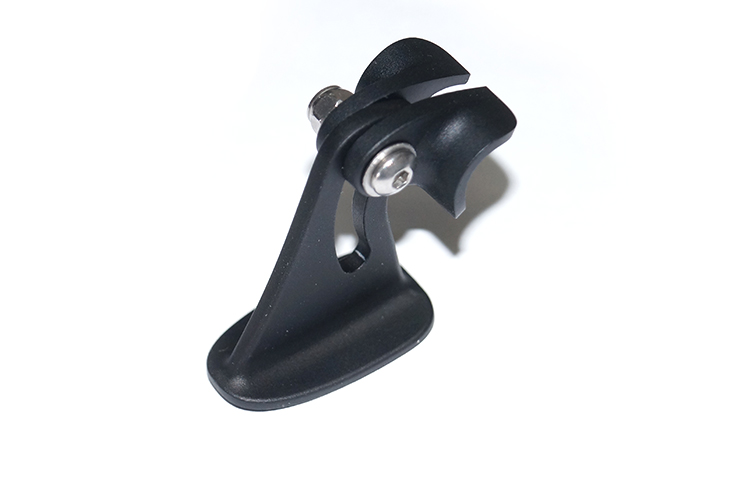

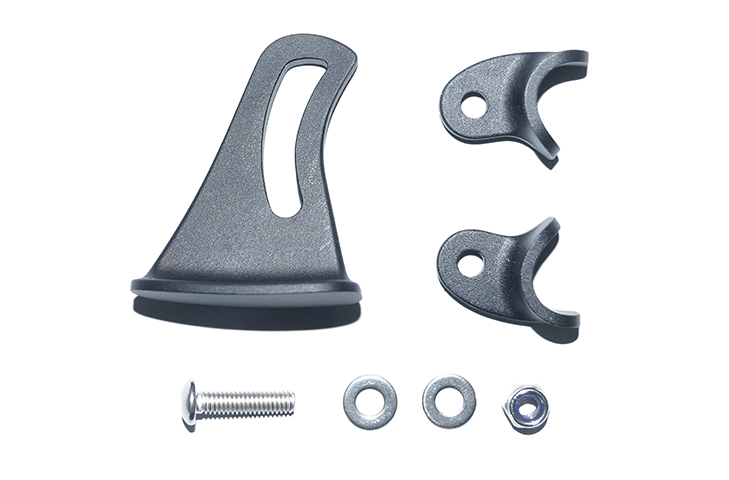

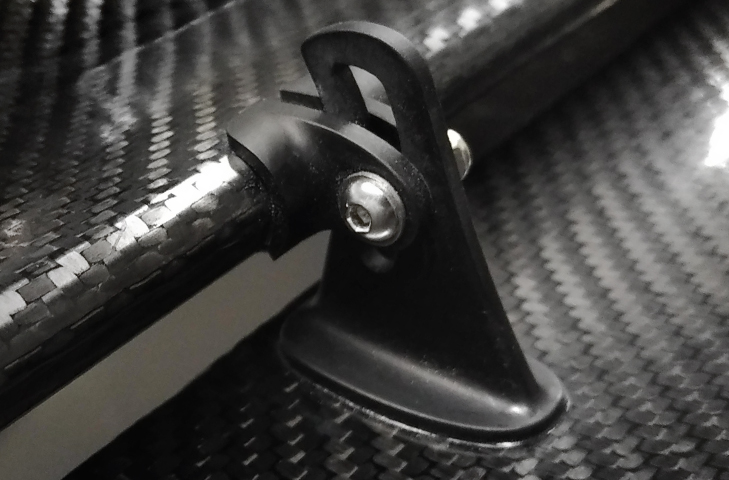

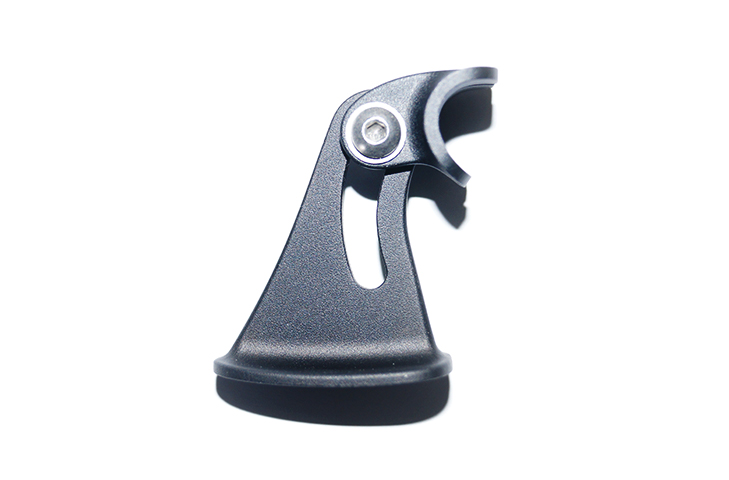

Used on our dual element wings to provide extra support to a 2nd element wing, this kit consists of 2 x leading edge mounting tabs (that bond to the second element wing) and 1 x adjustment tab (that bonds onto the main wing). This set can be used for all our wing profiles (110, 150, 225, 310mm LD/HD chord) except for curved wings. The tabs are black anodise finished. Kit includes 1 x adjustment tab, 2 x leading edge mount tabs, 1 x M4 x 16mm button head bolt, 2 x M4 washers and 1 x M4 Nyloc nut.

If ordering with a wing, we can bond the set as required at extra cost.

If customer bonding, we recommend using 3M DP490 adhesive for superior bonding strength.
